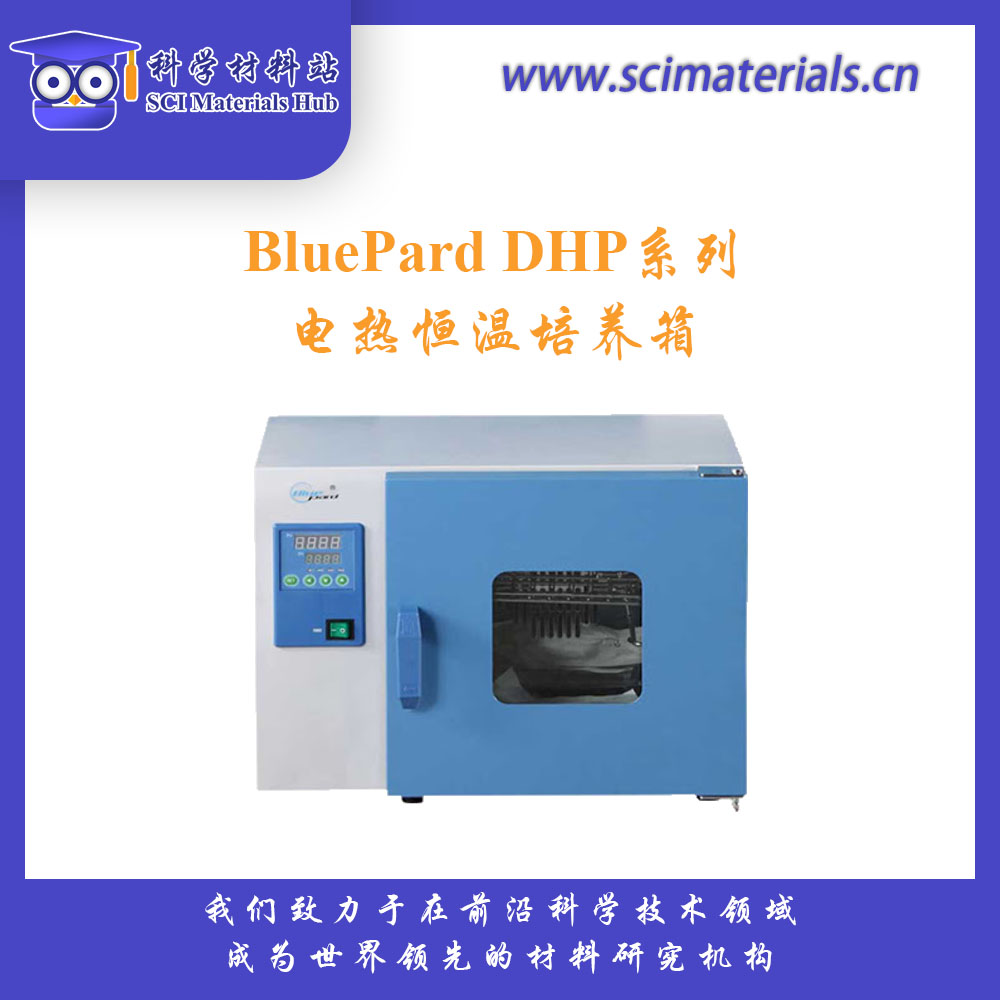

DHP系列电热恒温培养箱分为卧式和立式两种。
1、产品特点
● 模糊PID控制器,控温精确波动小,带定时功能,时间最大设定值为99小时59分。
● 强制对流的风道系统能提高温度响应速度,改善温度均匀性和减少温度波动。
● 箱门内层有一层玻璃门,观察方便明了,玻璃门打开时,微风循环和加热自动停止,无温度过冲之弊。
● 镜面不锈钢内胆,电热管加热方式,加热速度快,使箱内均匀加热。
● 独立限温报警系统,超过限制温度即自动中断,保证实验安全运行不发生意外。(选配)
● 可配打印机或RS485接口,用于连接打印机或计算机,能记录温度参数的变化状况。(选配)
2、循环风扇速度自动控制
● 循环风扇速度大小可自动控制,当箱内温度处于恒温状态时,速度会减小,循环风速会调整到适宜细胞成长的风速,避免试验过程中由于风量过大造成样品的挥发。
3、多段可编程控制器(选配)
● 多段液晶可编程控制器,多种参数一屏显示,菜单式操作界面,可以简化复杂的试验过程,真正实现自动控制与运行。
● 多段温度、循环风速、时间和升温速率等参数能同时设置与编程,可以进行温度上升的梯度控制,从箱内初始温度缓慢升温等功能,也可预设自动开机、待机与关机等功能。
● 可预设7组63步可编程序,每组9步,每组设置时间0~5999分。
4、安全功能
● 独立限温报警系统,并声光报警提示操作者,保证安全运行不发生意外。(选配)
● 温度偏高或偏低及超温报警。
◆ 紫外杀菌系统(选配)
● 可定期对箱体内部进行消毒,可有效杀灭箱体内循环空气中的浮菌,从而有效防止细胞培养期间的污染。
资料下载:
技术参数(卧式) | ||||||
型号 | DHP-9012 DHP-9012B | DHP-9032 DHP-9032B | DHP-9052 DHP-9052B | DHP-9082 DHP-9082B | DHP-9162 DHP-9162B | DHP-9272 DHP-9272B |
输入功率 | 200W | 200W | 300W | 400W | 600W | 750W |
容积 | 16L | 35L | 50L | 80L | 160L | 270L |
内胆尺寸 W×D×H(mm) | 250×260×250 | 340×320×320 | 415×360×355 | 500×400×400 | 500×500×650 | 600×600×750 |
外形尺寸 W×D×H(mm) | 530×480×420 | 620×490×490 | 690×500×500 | 780×530×560 | 790×630×810 | 890×740×910 |
电源电压 | AC220V 50HZ | |||||
控温范围 | RT+5~65℃ | |||||
温度分辨率/波动度 | 0.1℃/±0.5℃ | |||||
温度均匀度 | ±1.5℃(37℃时) | |||||
工作环境温度 | +5~35℃ | |||||
载物托架(标配) | 2块 | |||||
价格 | RMB2700 RMB3100 | RMB3100 RMB3600 | RMB3400 RMB4200 | RMB4200 RMB4990 | RMB5400 RMB6500 | RMB6900 RMB8300 |
注:“B”为液晶显示控制器
技术参数(立式) | |||
型号 | DHP-9402(立式) | DHP-9602(立式) | DHP-9902(立式) |
输入功率 | 1100W | 1400W | 2200W |
容积 | 420L | 620L | 1000L |
内胆尺寸 W×D×H(mm) | 640×585×1355 | 840×600×1355 | 890×740×1590 |
外形尺寸 W×D×H(mm) | 780×750×1880 | 980×800×1880 | 1050×880×2060 |
载物托架(标配) | 3块 | 4块 | 4块 |
电源电压 | AC220V 50HZ | ||
控温范围 | RT+5~65℃ | ||
温度分辨率/波动度 | 0.1℃/±0.5℃ | ||
温度均匀度 | ±2.0℃(37℃时) | ||
工作环境温度 | +5~35℃ | ||
价格 | RMB16900 | RMB19900 | RMB31900 |
注:“B”为液晶显示控制器,DHP-9012有观察窗无内玻璃门
选购件:(增加选购件交货期7天)
1、多段可编程液晶温度控制器 ¥1500元 |
2、嵌入式打印机 ¥2500元 |
3、独立限温控制器 ¥500元 |
4、RS485接口和通讯软件 ¥600元 |
5、紫外杀菌系统 ¥1000元 |
如需购买请咨询客服人员
电话:+86 130-0303-8751/+86 156-0553-2352
微信:SCI-Materials-Hub
如需报价单请联系:Email: contact@scimaterials.cn
