SMH PPL高温对位聚苯内胆高压消解罐现已在石油化工、生物医学、材料科学、地质化学、环境科学、疾控中心、食品科学、商品检验等领域的研究中被广泛使用。

水热合成反应釜也称为高压消解罐、溶样器、压力溶弹、消化罐、聚四氟乙烯高压罐、聚四氟乙烯密封消解器，是利用罐体内强酸或强碱且高温高压密闭的环境来达到快速消解难溶物质的目的。是测定微量元素及痕量元素时消解样品的得力助手。样品前处理消解重金属、农残、食品、淤泥、稀土、水产品、有机物等。

釜体特性：

优质304不锈钢（实心钢棒加工，耐高压）

数控车床加工，精准度高、耐压度好

对位聚苯（简称PPL)内胆材质特性：

耐高温：≤280°C（260°C内连续加热48h以上不变形，密封不漏气）

工作压力：≤3MPa

升降温速率：≤5℃/min

容积选择：25ml, 50ml, 100ml, 150ml, 200ml, 250ml, 300ml, 500ml

经高温烧结冷却而制成耐强酸强碱、王水有机溶剂

性能优于聚四氟乙烯制品耐高温性能方面表现更优异

精致工艺深棕色、表面无裂纹外形美观

产品特点：

1,抗腐蚀性好，无有害物质溢出，减少污染，使用安全。

2,升温、升压后，能快速无损失地溶解在常规条件下难以溶解的试样及含有挥发性元素的试样。

3,外形美观，结构合理，操作简单，缩短分析时间，数据可靠。

4,内有聚四氟乙烯衬套，双层护理，可耐酸，碱等。

5,可代替铂坩埚解决高纯氧化铝中微量元素分析的溶样处理问题。

操作使用方法：

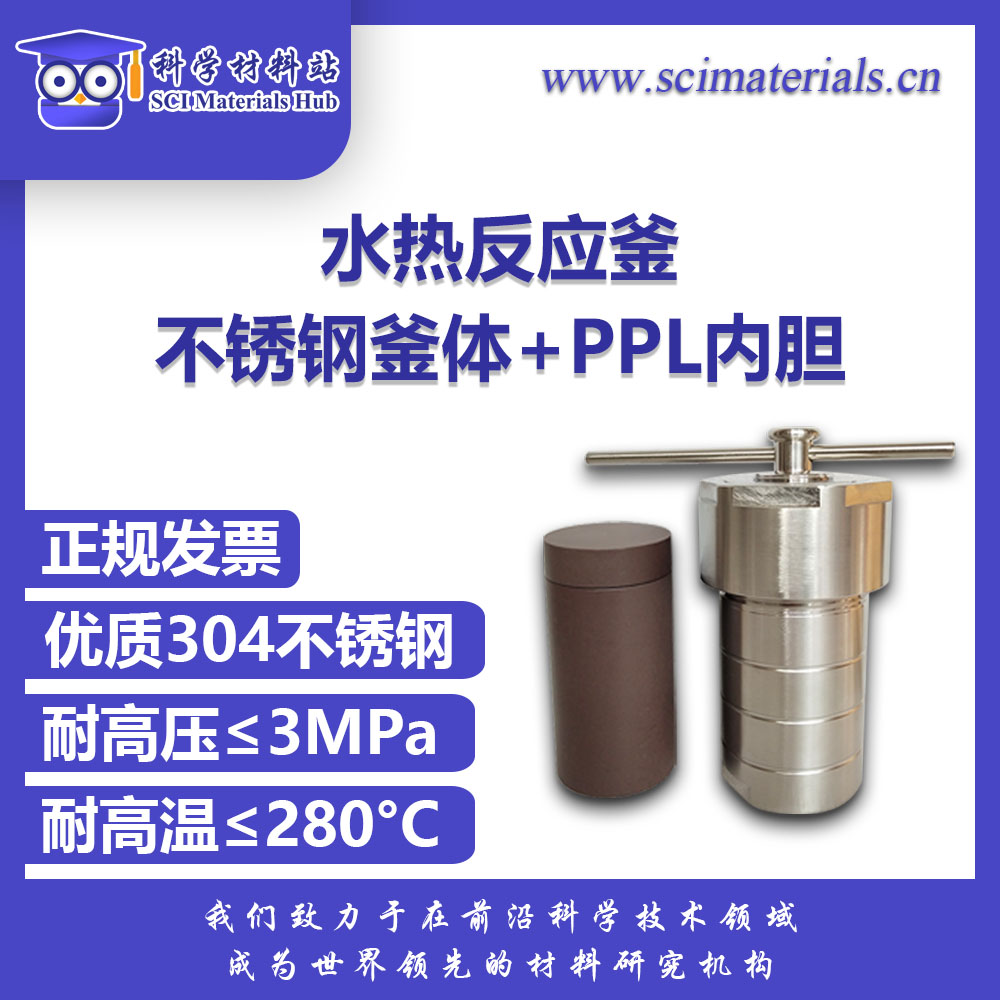

本产品是用PPL对位聚苯内杯和不锈钢外套组成，使用时应该注意如下方面：

一、使用前：

PPL对位聚苯内杯需要酸液浸泡一段时间，可将PPL对位聚苯内杯表面的附着物清洗干净

二、使用中：

将溶剂和样品加入PPL对位聚苯内杯中，盖好压紧(即使压紧，PPL对位聚苯盖子和PPL对位聚苯杯体接口处仍有约1毫米的起密封作用的缝隙)，再把PPL对位聚苯内杯放到不锈钢套中(钢套里面的钢垫是小面朝下)，两片钢垫盖好，拧紧钢盖，一般不必用钢棒助力拧紧，普通男同志手拧力量已经足够。之后将装好的反应物并拧紧的本产品放到烘箱中加热。

产品三项指标：①设计温度≤280℃；②压力≤3Mpa；③升降温速率≤5℃/min

三、使用后：

消解结束后，不可立即把本产品拧开，待冷却后方可打开，冷却后外罐可以很轻松打开，如果打不开，用钢棒助力打开，实验结束应该清洗本产品各部件，如多个内杯盖和体尽量不要混淆，干燥保存。

消解用溶剂加入量根据不同实验而定，一般为内杯的70%；

如果反应的产气量很大，建议冷硝化过晚，使用高氯酸、双氧水等尤其注意!

消解所用溶剂一般为：混酸、硝酸、氢氟酸、浓硫酸、王水、逆王水等及其它的有机溶剂。需消解的样品在零点几克到两克之间。当然消解用溶剂、需消解样品的量、时间、使用程序都是按照不同的实验条件酌情而定的。

注：如与实物尺寸有差异，请以实物尺寸为准
