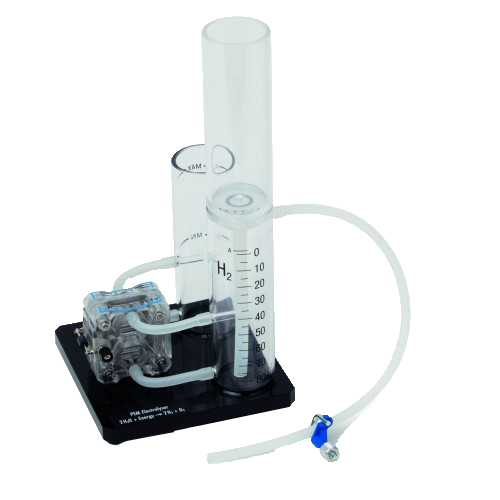

The Double Electrolyzer Kit (Formerly Electrolyzer 10) is a Double-Cell PEM Electrolyzer with water tanks, hydrogen and oxygen storage tanks. The Double Electrolyzer Kit produces and stores hydrogen and oxygen simply by adding de-ionized water and an electric load. The Electrolyzer and included tanks each have a magnetic base affixed firmly to their bottom sides so they can placed on the black metal base plate.
The electrolyzer provided in this set is maintenance-free. However, always remember to use fresh, distilled water each time and to drain the water from the storage tanks after use.
√ Hydrogen Production Rate: 20 cm3/min
√ Oxygen Production Rate: 10 cm3/min
√ Power Needed: 2.33 W
√ Hydrogen Gas Storage: 30 cm3/min
√ Oxygen Gas Storage: 30 cm3/min
√ Dimensions (H x W x D): 90 x 170 x 135 mm
√ Weight: 290 g
The growing significance of PEM electrolyzers mirrors the development of fuel cells. Electrolyzers generate the hydrogen required by fuel cells from water in an environmentally conscious manner. The electrical energy required for this purpose can be gained from renewable sources such as solar cells, wind farms or hydroelectric plants.
Water reacts in the electrolyzer under the influence of electrical energy according to the following formula: 2H2O = 2H2 + O2. This process takes place in the MEA (membrane electrode assembly). The MEA consists of the cathode, the anode, and a special polymer membrane (PEM) which is permeable to protons but which presents a barrier to electrons. Your h-tec electrolyzer functions on the PEM principle. The gases produced can be collected in storage tanks (H-TEC Storage 30 or Horizon 30mL Cylinders). The energy stored in chemical form in the gases can be converted back to electrical energy in a fuel cell as and when required.
The electrolyser does not produce hydrogen when the solar cell is connected.
Cause 2: You are using a double-cell electrolyser (electrolyser 10 or electrolyser cell 10) and are running it with a solar module for single cells.
Solution 2: Use the appropriate solar module - the Tutorial Double Solar Module.
资料下载:
氢气是一种可燃气体,因其热值高,燃烧产物为水,无污染物排放,对环境非常友好,越来越受到人们的关注。
制氢的方法有很多种,其中电解水是制氢最主要的方法之一。
科学材料站作为FuelCellStore中国区代理,负责H-TEC(FuelCellStore旗下)系列产品的销售和售后工作。 E系列电解槽是H-TEC公司为教学和研究开发的系列水电解制氢设备。 它采用先进的质子交换膜技术为电解槽的正负极提供电力,可以通过电解水来生产。 氢气,其结构包括:阴极、阳极、质子交换膜(PEM)。
电解水反应:
阳极反应:2H2O -> 4H+ + 4e- + O2
阴极反应:4H+ + 4e- -> 2H2
特别是该电解槽组件免维护,但请记住每次使用电导率小于2 μS/cm的蒸馏水或去离子水,并且使用后必须将储罐中的水排干保存。
H-TEC 电解槽(组件)系列 | |||||
产品型号 | E101 | E103 | E104 | E105 | E205 |
产品代码 | 1401030 | 1401031 | 1401032 | 1401033 | 1401034 |
电极面积(cm2) | 3.0 | 3.0 | 6.0 | 11.6 | 6.0 |
标准工作电流(A)*1 | 1.0 | 1.0 | 2.15 | 1.65 | 2.15 |
最大工作电流(A)*2 | 1.5 | 1.5 | 3.0 | 1.8 | 3.0 |
标准电流下的工作电压(V)*3 | -- | -- | -- | 7.9-8.0 | -- |
最大电流下的工作电压(V)*4 | 2 | 2 | 4 | 7.9-8.1 | 4 |
标准产氢速率(ml/min)*1 | 10 | 10 | 30 | 46 | 30 |
最大产氢速率(ml/min)*2 | -- | -- | 40 | 50 | 40 |
标准产氧速率(ml/min)*1 | 5 | 5 | 15 | 23 | 15 |
最大产氧速率(ml/min)*2 | -- | -- | 20 | 25 | 20 |
工作压力(Pa) | 0-2000 | ||||
氢气/氧气储气罐容积(ml) | 30 | -- | -- | -- | 80 |
尺寸(mm) | 170 x 145 x 92 | 51 x 51 x 41 | 90 x 170 x 135 | 75 x 71 x 53 | 90 x 170 x 135 |
质量(g) | -- | 58 | 62.4 | 82.2 | 290 |
备注 | 组件 | 单个电极 | 单个电极 | 单个电极 | 组件 |
实物图 | |||||
科学材料站致力于提供最优的价格和用户服务! |
*1. 室温去离子水或蒸馏水
*2. 42-45 °C加热去离子水或蒸馏水
*3. 在烟囱终端处测量使用室温去离子水或蒸馏水
*4. 在烟囱终端处测量使用42-45 °C加热去离子水或蒸馏水

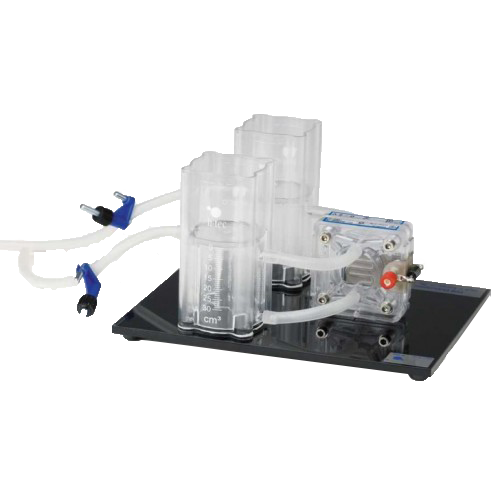

E101-单极电解槽(组件)
E101-单极电解槽(组件)是一种入门级的电解槽电极组件。 它由E103电解板电极、金属底板、两个30ml储气罐、塑料管组成。 电解板电极只有一个反应面。,电极面积约为3.0 cm2,在1A电流下,产氢速率为10 ml/min,产氧速率为5 ml/min。

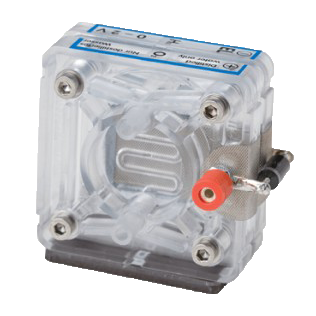

E103-单极电解槽(单电极)
E103-单极电解槽(单电极)是一种入门级的电解槽。 它只有一个反应面,电极面积约为 3.0 cm2。 在1 A电流下,产氢速率为10 ml/min。 制氧速率为 5 ml/min

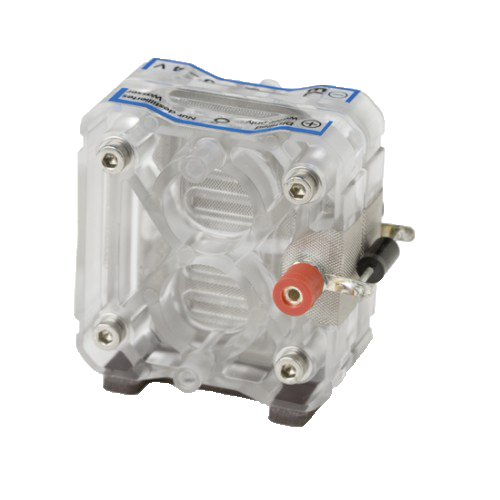

E104-双极电解槽(单电极)
E104-双极电解槽(单电极)是升级后的电解槽,有两个反应面,电极面积约 6.0 cm2,在 2.15 A 电流下产氢速率为 30 mL/min,产氧速率是15 ml /min

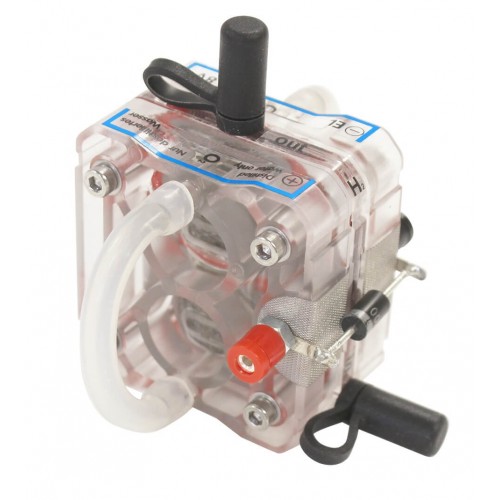

E105-四极电解槽(单电极)
E105-四极电解槽(单电极)是升级的电解槽,它有四个反应面,电极面积约6.0 cm2,在2.15 A电流下产氢速率为30 ml/min,产氧速率为15 ml/min
E205-双极电解槽(组件)
E205-双极电解槽(组件)是一种升级的电解槽组件。 它由E104电解板电极、1个金属底板、2个80ml储气罐、塑料管组成。 电解板电极具有2个反应面,电极面积约6.0 cm2,在2.15 A电流下,产氢速率为30 ml/min,产氧速率为15 ml/min
1. 手机淘宝(官方淘宝店铺:科学材料站)
2. 点击进入淘宝网页链接
H-TEC 电解槽(组件)系列 | |||
产品代码 | 产品描述 | 价格(¥) | 货期 |
1401030 | E101-单极电解槽(组件) | 1930 | 请咨询 |
1401031 | E103-单极电解槽(单个电极) | 1299 | 请咨询 |
1401032 | E104-双极电解槽(单个电极) | 1499 | 请咨询 |
1401033 | E105-四极电解槽(单个电极) | 1899 | 请咨询 |
1401034 | E205-双极电解槽(组件) | 2250 | 请咨询 |
1401035 | E206-电解槽双模块组件 | 3999 | 请咨询 |
1401036 | E207-电解槽七模块组件 | 5999 | 请咨询 |
1401037 | E208-可拆卸电解槽组件 | 2480 | 请咨询 |
We Are Committed to Offering The Best Price & Customer Service! |
3. 其它联系方式
电话:+86 130-0303-8751/+86 156-0553-2352
微信:SCI-Materials-Hub
如需报价单请联系:Email: contact@scimaterials.cn
