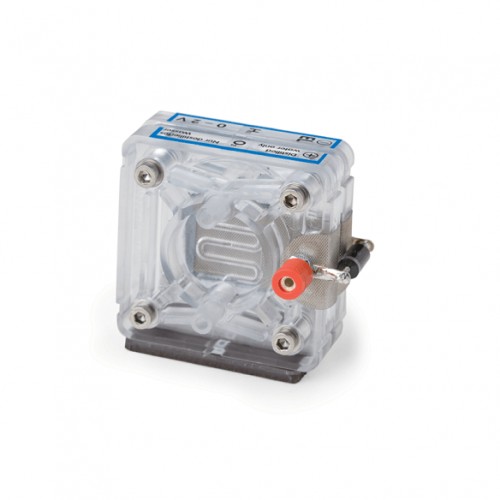

The Single Electrolyzer (Formerly Electrolyzer Cell 5) is a PEM electrolyzer for the production of hydrogen and oxygen. This cell can only be used in electrolyzer mode for the production of hydrogen. Please see technical specifications for hydrogen production levels.

The electrolyzer provided in this set is maintenance-free. However, always remember to use fresh, distilled water each time and to drain the water from the storage tanks after use.

√ Permissible Voltage: up to 2VDC
√ Permissible Current : up to 1.5A
√ Hydrogen Production: up to 10mL/min
√ Oxygen Production : up to 5mL/min
√ Electrode Area: 2.9 cm²

√ Requires Commercial distilled (deionised) water with a conductivity of < 2 μS/cm
√ Dimensions (H x W x D): 51 x 51 x 41 mm
√ Weight: ~58 g

The growing significance of PEM electrolyzers mirrors the development of fuel cells. Electrolyzers generate the hydrogen required by fuel cells from water in an environmentally conscious manner. The electrical energy required for this purpose can be gained from renewable sources such as solar cells, wind farms or hydroelectric plants.

Water reacts in the electrolyzer under the influence of electrical energy according to the following formula: 2H₂O = 2H₂ + O₂. This process takes place in the MEA (membrane electrode assembly). The MEA consists of the cathode, the anode, and a special polymer membrane (PEM) which is permeable to protons but which presents a barrier to electrons. Your h-tec electrolyzer functions on the PEM principle. The gases produced can be collected in storage tanks (H-TEC Storage 30 or Horizon 30mL Cylinders). The energy stored in chemical form in the gases can be converted back to electrical energy in a fuel cell as and when required.

Solution 2: Use the appropriate solar module - the Tutorial Double Solar Module.

资料下载：

E101-E103-E104-E205产品手册.pdf

E-105产品手册.pdf

氢气是一种可燃气体，因其热值高，燃烧产物为水，无污染物排放，对环境非常友好，越来越受到人们的关注。

制氢的方法有很多种，其中电解水是制氢最主要的方法之一。

科学材料站作为FuelCellStore中国区代理，负责H-TEC（FuelCellStore旗下）系列产品的销售和售后工作。 E系列电解槽是H-TEC公司为教学和研究开发的系列水电解制氢设备。 它采用先进的质子交换膜技术为电解槽的正负极提供电力，可以通过电解水来生产。 氢气，其结构包括：阴极、阳极、质子交换膜（PEM）。

电解水反应：

阳极反应：2H₂O -> 4H⁺ + 4e^- + O₂

阴极反应：4H⁺ + 4e^- -> 2H₂

特别是该电解槽组件免维护，但请记住每次使用电导率小于2 μS/cm的蒸馏水或去离子水，并且使用后必须将储罐中的水排干保存。

H-TEC 电解槽（组件）系列
产品型号	E101	E103	E104	E105	E205
产品代码	1401030	1401031	1401032	1401033	1401034
电极面积(cm2)	3.0	3.0	6.0	11.6	6.0
标准工作电流(A)*1	1.0	1.0	2.15	1.65	2.15
最大工作电流(A)*2	1.5	1.5	3.0	1.8	3.0
标准电流下的工作电压(V)*3	--	--	--	7.9-8.0	--
最大电流下的工作电压(V)*4	2	2	4	7.9-8.1	4
标准产氢速率(ml/min)*1	10	10	30	46	30
最大产氢速率(ml/min)*2	--	--	40	50	40
标准产氧速率(ml/min)*1	5	5	15	23	15
最大产氧速率(ml/min)*2	--	--	20	25	20
工作压力(Pa)	0-2000
氢气/氧气储气罐容积(ml)	30	--	--	--	80
尺寸(mm)	170 x 145 x 92	51 x 51 x 41	90 x 170 x 135	75 x 71 x 53	90 x 170 x 135
质量(g)	--	58	62.4	82.2	290
备注	组件	单个电极	单个电极	单个电极	组件
实物图
科学材料站致力于提供最优的价格和用户服务！

*1. 室温去离子水或蒸馏水

*2. 42-45 °C加热去离子水或蒸馏水

*3. 在烟囱终端处测量使用室温去离子水或蒸馏水

*4. 在烟囱终端处测量使用42-45 °C加热去离子水或蒸馏水

E101-单极电解槽（组件）

E101-单极电解槽（组件）是一种入门级的电解槽电极组件。 它由E103电解板电极、金属底板、两个30ml储气罐、塑料管组成。 电解板电极只有一个反应面。，电极面积约为3.0 cm²，在1A电流下，产氢速率为10 ml/min，产氧速率为5 ml/min。

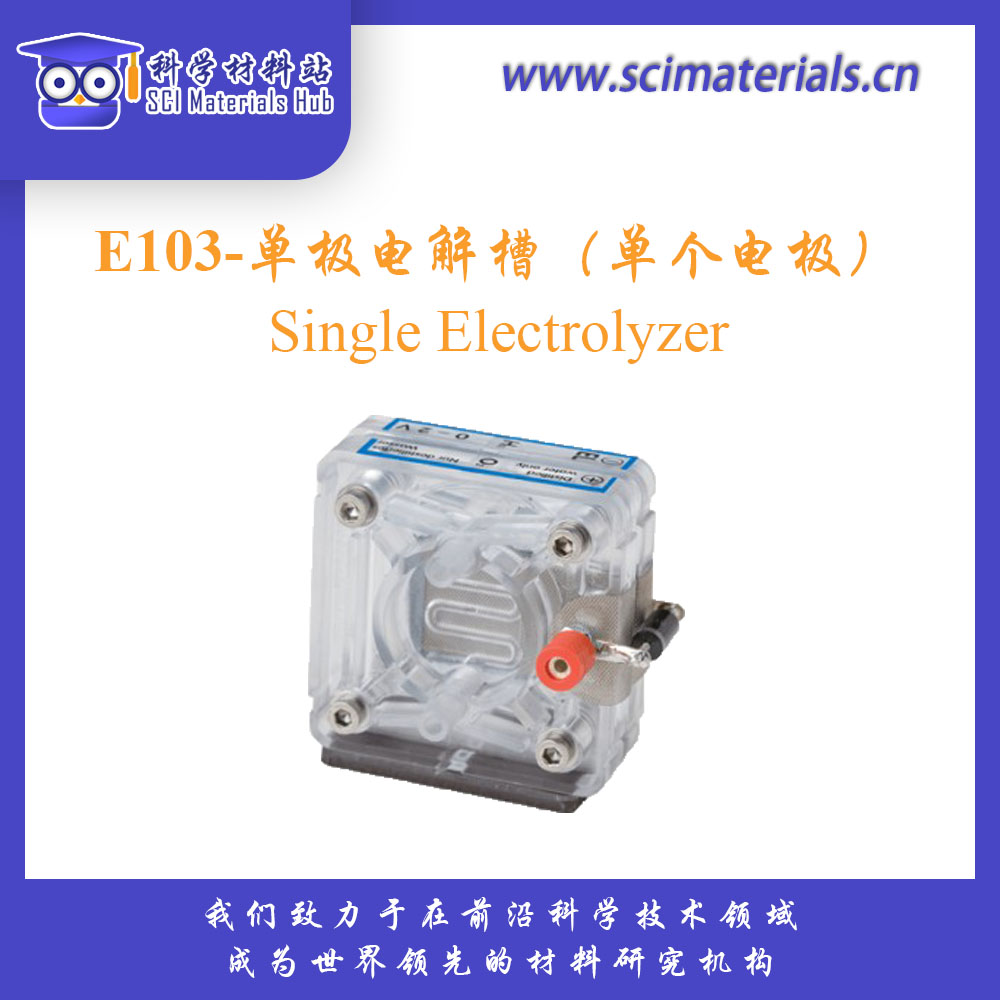

E103-单极电解槽（单电极）

E103-单极电解槽（单电极）是一种入门级的电解槽。 它只有一个反应面，电极面积约为 3.0 cm²。 在1 A电流下，产氢速率为10 ml/min。 制氧速率为 5 ml/min

E104-双极电解槽（单电极）

E104-双极电解槽（单电极）是升级后的电解槽，有两个反应面，电极面积约 6.0 cm²，在 2.15 A 电流下产氢速率为 30 mL/min，产氧速率是15 ml /min

E105-四极电解槽（单电极）

E105-四极电解槽（单电极）是升级的电解槽，它有四个反应面，电极面积约6.0 cm²，在2.15 A电流下产氢速率为30 ml/min，产氧速率为15 ml/min

E205-双极电解槽（组件）

E205-双极电解槽（组件）是一种升级的电解槽组件。 它由E104电解板电极、1个金属底板、2个80ml储气罐、塑料管组成。 电解板电极具有2个反应面，电极面积约6.0 cm²，在2.15 A电流下，产氢速率为30 ml/min，产氧速率为15 ml/min
