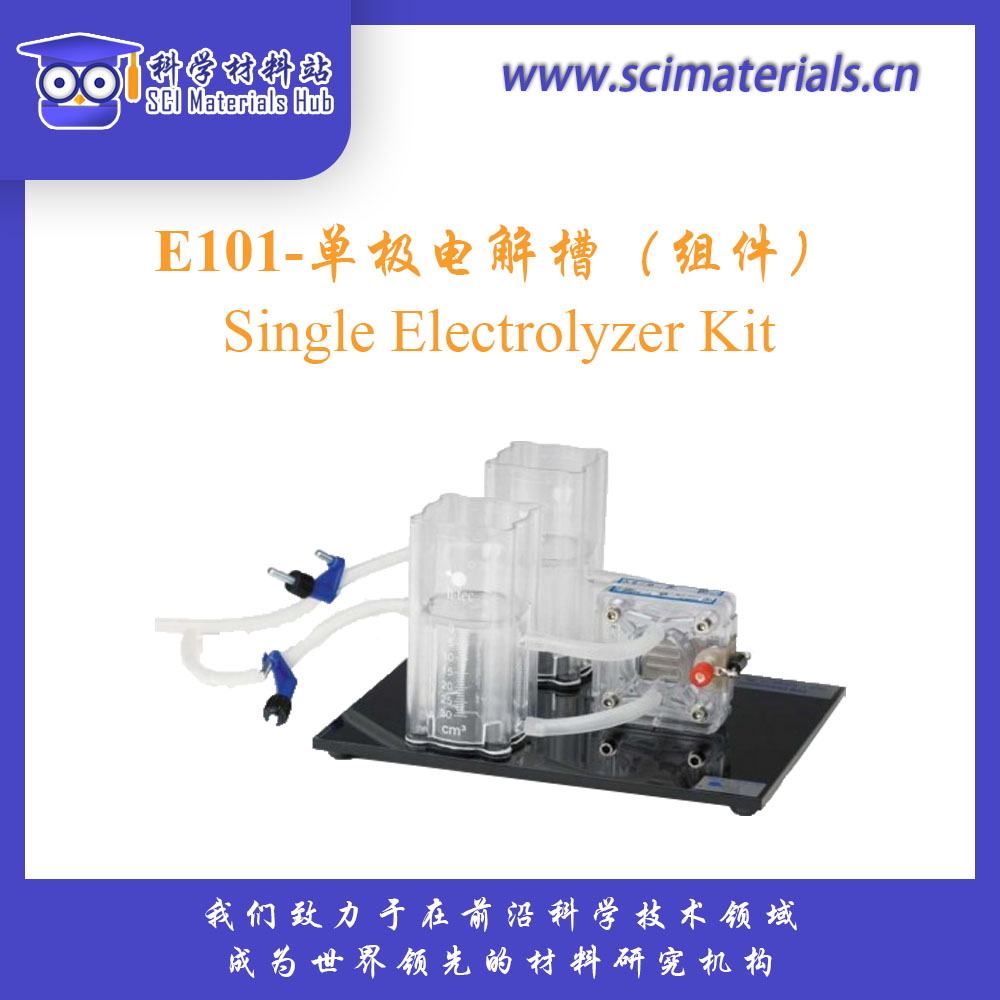

E101-单极电解槽(组件)

  • 产品代码:1401030
  • 产品描述:E101 Single Electrolyzer Kit
  • 品牌:H-TEC
  • 货期:2-4周
  • 浏览次数:
  • 咨询电话:+86 130-0303-8751
  • 关键词:E101-单极电解槽(组件), E101 Single Electrolyzer Kit, SCI Materials Hub, 科学材料站
65.7K

The Single Electrolyzer Kit (Formerly Electrolyzer 5) is a PEM Electrolyzer with water tanks, hydrogen and oxygen storage tanks. The Single Electrolyzer Kit produces and stores hydrogen and oxygen simply by adding de-ionized water and an electric load. The Electrolyzer and included tanks each have a magnetic base affixed firmly to their bottom sides so they can placed on the black metal base plate.

The electrolyzer provided in this set is maintenance-free. However, always remember to use fresh, distilled water each time and to drain the water from the storage tanks after use.


Specifications:

Permissible Voltage: up to 2VDC
Permissible Current : up to 1.5A
Hydrogen Production: up to 10mL/min
Oxygen Production : up to 5mL/min
Electrode Area: 2.9 cm2
Requires Commercial distilled (deionised) water with a conductivity of < 2 μS/cm
Dimensions (H x W x D): 51 x 51 x 41 mm
Weight: ~58 g


About PEM Electrolyzers

The growing significance of PEM electrolyzers mirrors the development of fuel cells. Electrolyzers generate the hydrogen required by fuel cells from water in an environmentally conscious manner. The electrical energy required for this purpose can be gained from renewable sources such as solar cells, wind farms or hydroelectric plants.

Water reacts in the electrolyzer under the influence of electrical energy according to the following formula: 2H2O = 2H2 + O2. This process takes place in the MEA (membrane electrode assembly). The MEA consists of the cathode, the anode, and a special polymer membrane (PEM) which is permeable to protons but which presents a barrier to electrons. Your h-tec electrolyzer functions on the PEM principle. The gases produced can be collected in storage tanks (H-TEC Storage 30 or Storage 80). The energy stored in chemical form in the gases can be converted back to electrical energy in a fuel cell as and when required.


The electrolyser does not produce hydrogen when the solar cell is connected.
Cause 1: The light intensity is insufficient.
Solution 1: Check the power specifications of the light source. You need sufficient sunlight or halogen lamps with focused light such as the Sun Simulator Light. Energy-saving lamps, fluorescent tubes, etc. are not suitable for the operation of solar modules.
Cause 2: You are using a double-cell electrolyser (electrolyser 10 or electrolyser cell 10) and are running it with a solar module for single cells.

Solution 2: Use the appropriate solar module - the Tutorial Double Solar Module.


The electrolyser does not work despite being set up correctly.
You have not used distilled water. The cell is permanently damaged.

资料下载:

E101-E103-E104-E205产品手册.pdf

E-105产品手册.pdf


氢气是一种可燃气体,因其热值高,燃烧产物为水,无污染物排放,对环境非常友好,越来越受到人们的关注。

制氢的方法有很多种,其中电解水是制氢最主要的方法之一。

科学材料站作为FuelCellStore中国区代理,负责H-TEC(FuelCellStore旗下)系列产品的销售和售后工作。 E系列电解槽是H-TEC公司为教学和研究开发的系列水电解制氢设备。 它采用先进的质子交换膜技术为电解槽的正负极提供电力,可以通过电解水来生产。 氢气,其结构包括:阴极、阳极、质子交换膜(PEM)。

电解水反应:

阳极反应:2H2O -> 4H+ + 4e- + O2

阴极反应:4H+ + 4e- -> 2H2

特别是该电解槽组件免维护,但请记住每次使用电导率小于2 μS/cm的蒸馏水或去离子水,并且使用后必须将储罐中的水排干保存。

H-TEC 电解槽(组件)系列
产品型号E101E103E104E105E205
产品代码14010301401031140103214010331401034
电极面积(cm2)3.03.06.011.66.0
标准工作电流(A)*11.01.02.151.652.15
最大工作电流(A)*21.51.53.01.83.0
标准电流下的工作电压(V)*3--
----7.9-8.0--
最大电流下的工作电压(V)*42247.9-8.14
标准产氢速率(ml/min)*11010304630
最大产氢速率(ml/min)*2----405040
标准产氧速率(ml/min)*155152315
最大产速率(ml/min)*2----202520
工作压力(Pa)0-2000
氢气/氧气储气罐容积(ml)30------80
尺寸(mm)170 x 145 x 9251 x 51 x 4190 x 170 x 13575 x 71 x 5390 x 170 x 135
质量(g)--5862.482.2290
备注组件单个电极单个电极单个电极组件
实物图

科学材料站致力于提供最优的价格和用户服务!

*1. 室温去离子水或蒸馏水

*2. 42-45 °C加热去离子水或蒸馏水

*3. 在烟囱终端处测量使用室温去离子水或蒸馏水

*4. 在烟囱终端处测量使用42-45 °C加热去离子水或蒸馏水

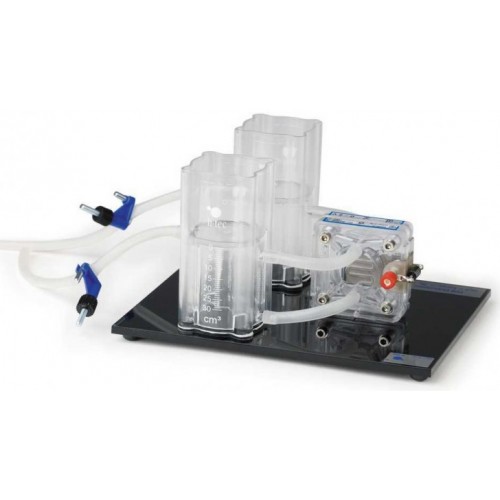

E101-单极电解槽(组件)

E101-单极电解槽(组件)是一种入门级的电解槽电极组件。 它由E103电解板电极、金属底板、两个30ml储气罐、塑料管组成。 电解板电极只有一个反应面。,电极面积约为3.0 cm2,在1A电流下,产氢速率为10 ml/min,产氧速率为5 ml/min。

E103-单极电解槽(单电极)

E103-单极电解槽(单电极)是一种入门级的电解槽。 它只有一个反应面,电极面积约为 3.0 cm2。 在1 A电流下,产氢速率为10 ml/min。 制氧速率为 5 ml/min

E104-双极电解槽(单电极)

E104-双极电解槽(单电极)是升级后的电解槽,有两个反应面,电极面积约 6.0 cm2,在 2.15 A 电流下产氢速率为 30 mL/min,产氧速率是15 ml /min

E105-四极电解槽(单电极)

E105-四极电解槽(单电极)是升级的电解槽,它有四个反应面,电极面积约6.0 cm2,在2.15 A电流下产氢速率为30 ml/min,产氧速率为15 ml/min

E205-双极电解槽(组件)

E205-双极电解槽(组件)是一种升级的电解槽组件。 它由E104电解板电极、1个金属底板、2个80ml储气罐、塑料管组成。 电解板电极具有2个反应面,电极面积约6.0 cm2,在2.15 A电流下,产氢速率为30 ml/min,产氧速率为15 ml/min

1. 手机淘宝(官方淘宝店铺:科学材料站)


2. 点击进入淘宝网页链接

H-TEC 电解槽(组件)系列

产品代码

产品描述

价格(¥)货期
1401030E101-单极电解槽(组件)1930请咨询
1401031E103-单极电解槽(单个电极)1299请咨询
1401032E104-双极电解槽(单个电极)1499请咨询
1401033E105-四极电解槽(单个电极)1899请咨询
1401034E205-双极电解槽(组件)2250请咨询
1401035E206-电解槽双模块组件3999请咨询
1401036E207-电解槽七模块组件5999
请咨询
1401037E208-可拆卸电解槽组件2480请咨询
